What Happens When You Type a URL (The Full Journey)

The Journey at a Glance

Use this as a cheat sheet. Each row has its own section below.

Step 1: The Browser Interprets What You Typed and Checks Its Caches

Before anything touches the network, the browser decides what your input is. readthemanual.co.uk looks like a hostname, so it becomes a URL. how dns works has spaces and no dot, so it goes to your search engine. If you type a bare hostname without a scheme, Chrome (since version 90) and other current browsers try https:// first rather than http://.

Then come the caches:

• HSTS: If the site has previously sent a Strict-Transport-Security header, or the domain is on the browser’s built-in HSTS preload list, the browser rewrites http:// to https:// internally before sending anything. In Chrome’s DevTools you will see this as a 307 Internal Redirect that never left your machine. The header is defined in RFC 6797; MDN’s HSTS page covers the directives.
• HTTP cache: If a previous response said Cache-Control: max-age=3600 and it is still fresh, the browser can serve it without a request at all. DevTools shows “(memory cache)” or “(disk cache)” in the Size column.
• Browser DNS cache: Browsers keep their own short-lived host cache on top of the operating system’s. In Chrome you can view and clear it at chrome://net-internals/#dns; in Firefox, about:networking#dns.
• Existing connections: If the browser already has an open HTTP/2 or HTTP/3 connection to that host, it reuses it and skips Steps 2 to 4 entirely. This is why the second page you load on a site is faster than the first.

You can watch HSTS from the command line. A site that sends the header looks like this (output captured 31 October 2026):

curl -sI https://github.com/ | grep -i strict-transport
strict-transport-security: max-age=31536000; includeSubdomains; preload

A site that redirects plain HTTP at the server, instead of relying on HSTS, answers an http:// request with a real 301:

curl -sI https://readthemanual.co.uk/ | head -5
HTTP/1.1 301 Moved Permanently
Date: Sat, 31 Oct 2026 08:21:20 GMT
Content-Type: text/html; charset=UTF-8
Connection: keep-alive
Location: https://readthemanual.co.uk/

The difference matters: with only a 301, that first unencrypted request still goes out over the network, where it can be intercepted. HSTS, and especially preloading, stops the browser sending it in the first place.

Step 2: DNS Resolution, in the Order It Actually Happens

The browser needs an IP address for the hostname. We covered DNS itself in detail in Part 2 of this series; here is the exact order of lookups on a typical machine, because “which cache answered?” is the question that solves most DNS mysteries.

1. Browser host cache. Checked first, as above.
2. The operating system resolver. The browser calls the OS (on Linux, getaddrinfo()). On Linux, /etc/nsswitch.conf decides the order; the usual line is hosts: files dns, meaning /etc/hosts is read before any DNS query. On Windows, the DNS Client service keeps a cache that is preloaded with entries from C:\Windows\System32\drivers\etc\hosts, and ipconfig /displaydns shows it.
3. The local stub resolver. On Ubuntu and most systemd distributions, systemd-resolved listens on 127.0.0.53 with its own cache, and /etc/resolv.conf points at it. It forwards misses to the DNS servers you got from DHCP or configured by hand.
4. The recursive resolver. Your router, your ISP, a Pi-hole, or a public resolver such as 1.1.1.1. If it has the answer cached (within the record’s TTL), it replies straight away.
5. Root, TLD, authoritative. On a cache miss, the recursive resolver asks a root server which servers handle .uk, asks those which servers handle readthemanual.co.uk, and asks the domain’s authoritative servers for the A (IPv4) and AAAA (IPv6) records. The protocol is defined in RFC 1034.

One nuance worth knowing: if the browser has DNS over HTTPS switched on (Chrome’s “Use secure DNS”, Firefox’s DNS over HTTPS setting), it sends queries straight to its DoH provider and bypasses the OS stub resolver. That is a common reason dig and the browser disagree about what a name resolves to.

See which cache answered, on Linux with systemd-resolved:

resolvectl query readthemanual.co.uk

Output captured 31 October 2026 from a Linux test machine (your interface name and addresses will differ):

readthemanual.co.uk: 2606:4700:3031::ac43:cc7f              -- link: ens18
                     2606:4700:3036::6815:3a94              -- link: ens18
                     172.67.204.127                         -- link: ens18
                     104.21.58.148                          -- link: ens18

-- Information acquired via protocol DNS in 1.8ms.
-- Data is authenticated: no; Data was acquired via local or encrypted transport: no
-- Data from: cache

“Data from: cache” tells you the stub resolver answered locally. Clear it with resolvectl flush-caches and the next query will say “network”. The resolvectl manual lists the other subcommands. On Windows, the equivalents are Resolve-DnsName readthemanual.co.uk in PowerShell and ipconfig /flushdns.

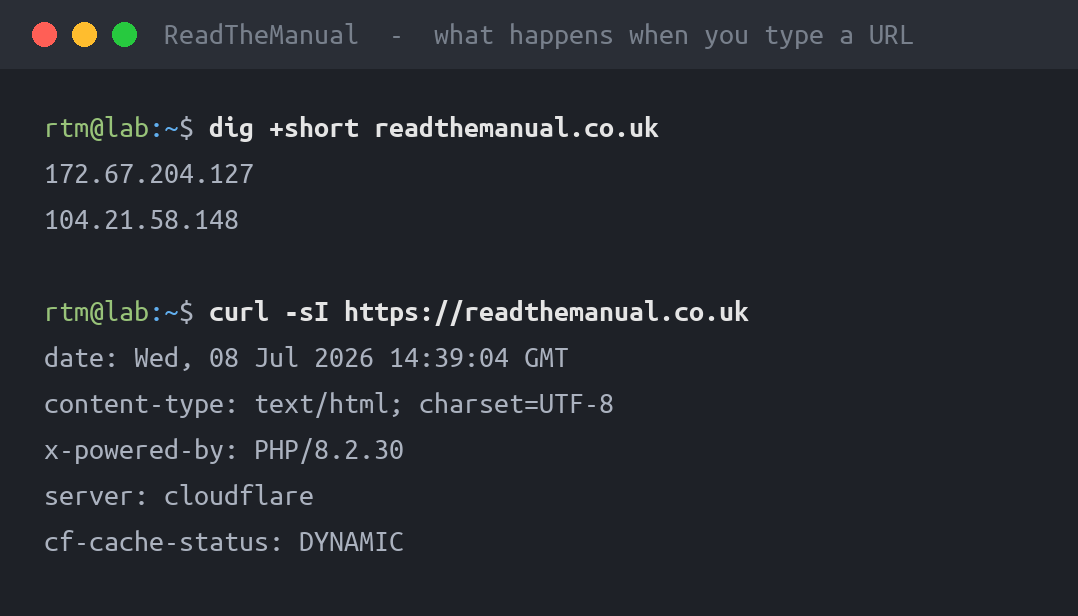

Watch the full delegation chain with dig +trace:

dig +trace +nodnssec -4 readthemanual.co.uk

Output captured 31 October 2026 (trimmed: the root and .uk server lists are shortened):

.                   7074    IN  NS  a.root-servers.net.
.                   7074    IN  NS  b.root-servers.net.
...
;; Received 239 bytes from 127.0.0.53#53(127.0.0.53) in 0 ms

uk.                 172800  IN  NS  nsa.nic.uk.
uk.                 172800  IN  NS  nsb.nic.uk.
...
;; Received 552 bytes from 199.7.91.13#53(d.root-servers.net) in 15 ms

readthemanual.co.uk. 172800 IN  NS  deb.ns.cloudflare.com.
readthemanual.co.uk. 172800 IN  NS  nero.ns.cloudflare.com.
;; Received 102 bytes from 156.154.101.3#53(nsb.nic.uk) in 10 ms

readthemanual.co.uk. 300    IN  A   104.21.58.148
readthemanual.co.uk. 300    IN  A   172.67.204.127
;; Received 80 bytes from 172.64.35.28#53(nero.ns.cloudflare.com) in 6 ms

Read it top to bottom: the local stub hands dig the list of root servers, a root server (d.root) refers it to the .uk servers run by Nominet, a .uk server refers it to Cloudflare’s nameservers for the domain, and Cloudflare’s authoritative server returns two A records with a 300-second TTL. Note that dig +trace does the iteration itself rather than asking your recursive resolver, so it shows you what the authoritative servers say right now, not what your resolver has cached. Use -4 if your machine has no IPv6 route, otherwise you will see “network unreachable” lines as dig tries IPv6 nameservers first.

The HTTPS record: DNS that tells the browser about HTTP/3 before it connects. Modern browsers can also ask for an HTTPS resource record (RFC 9460) alongside the A and AAAA records. It advertises which protocols the server speaks and can carry IP hints and Encrypted Client Hello keys:

dig +noall +answer readthemanual.co.uk HTTPS

readthemanual.co.uk. 153 IN HTTPS 1 . alpn="h3,h2" ipv4hint=104.21.58.148,172.67.204.127 ech=AEX+DQBB...AAA= ipv6hint=2606:4700:3031::ac43:cc7f,2606:4700:3036::6815:3a94

alpn="h3,h2" means the browser can go straight to HTTP/3 on the very first connection instead of waiting to discover it (Step 4b). The ech= value lets a browser that supports Encrypted Client Hello hide which hostname it is asking for from anyone watching the network.

Step 3: The TCP Handshake

With an IP address, the browser opens a connection to port 443. For HTTP/1.1 and HTTP/2 that means TCP (RFC 9293), which needs a three-way handshake before any data flows:

1. SYN: The client sends a segment with the SYN flag and its initial sequence number.

2. SYN-ACK: The server replies with its own sequence number and acknowledges the client’s.

3. ACK: The client acknowledges the server’s number. The connection is open, and the client can send its first data in the same flight as this ACK.

That costs one round trip. If the server is 10 ms away it adds about 10 ms; across the Atlantic it is closer to 70 to 80 ms. This is the main reason CDNs put servers near users: every round trip in Steps 3 and 4 is paid in distance.

IPv6 first, then IPv4 (Happy Eyeballs). When a name has both AAAA and A records, browsers and curl try IPv6 and IPv4 in a staggered race and use whichever connects first. The algorithm is Happy Eyeballs v2, RFC 8305. You can see it in curl -v on a machine with no IPv6 route:

* IPv6: 2606:4700:3031::ac43:cc7f, 2606:4700:3036::6815:3a94
* IPv4: 104.21.58.148, 172.67.204.127
*   Trying [2606:4700:3031::ac43:cc7f]:443...
* Immediate connect fail for 2606:4700:3031::ac43:cc7f: Network is unreachable
*   Trying [2606:4700:3036::6815:3a94]:443...
* Immediate connect fail for 2606:4700:3036::6815:3a94: Network is unreachable
*   Trying 104.21.58.148:443...

When a handshake fails, the error tells you which way. Connection refused means the host answered with a TCP reset: it is reachable, but nothing is listening on that port. Connection timed out means nothing answered at all: a firewall dropped the SYN, the route is broken or the host is down. Test the port directly:

# Linux / macOS
nc -zv readthemanual.co.uk 443

# Windows PowerShell
Test-NetConnection readthemanual.co.uk -Port 443

Step 4: The TLS 1.3 Handshake

Almost every site now uses HTTPS, so a TLS handshake runs on top of the TCP connection. It agrees encryption keys and proves the server is who it claims to be. TLS 1.3 (RFC 8446) does this in one round trip, where TLS 1.2 needed two:

1. ClientHello: The browser sends the TLS versions and cipher suites it supports, the hostname it wants (the SNI extension, so one IP can serve many sites), the protocols it can speak via ALPN (h2, http/1.1) and, crucially, a key share: its half of a Diffie-Hellman key exchange, guessed in advance.

2. ServerHello and the rest of the server’s flight: The server picks a cipher suite, sends its own key share, and from that moment both sides can derive the session keys. Everything after ServerHello is already encrypted: the server’s certificate chain, a CertificateVerify signature proving it holds the private key, and its Finished message.

3. Client verifies and finishes: The browser checks the certificate chains to a trusted root CA, has not expired, and lists the hostname in its Subject Alternative Name. If any check fails, you get the full-page warning. If it passes, the client sends Finished and the HTTP request straight after.

The older explanation, “the browser encrypts a session key with the server’s public key”, describes RSA key exchange, which TLS 1.3 removed. In TLS 1.3 the certificate’s key is only used to sign the handshake; the session keys come from the ephemeral key exchange, which is what gives forward secrecy.

0-RTT, and its catch. If you have connected recently, the server will have sent a session ticket. On the next visit the browser can resume with that ticket and send “early data” (the HTTP request) in its very first flight, with zero extra round trips. RFC 8446 is explicit that early data is not forward secret and can be replayed by an attacker, so servers should only accept it for requests that are safe to repeat, such as a plain GET (see section 8, “0-RTT and Anti-Replay”). Mentioning the replay risk is a good way to show depth in an interview.

See the handshake summary:

echo | openssl s_client -connect readthemanual.co.uk:443 -servername readthemanual.co.uk -brief

Output captured 31 October 2026 with OpenSSL 3.5.3:

CONNECTION ESTABLISHED
Protocol version: TLSv1.3
Ciphersuite: TLS_AES_256_GCM_SHA384
Peer certificate: CN=readthemanual.co.uk
Hash used: SHA256
Signature type: ecdsa_secp256r1_sha256
Verification: OK
Negotiated TLS1.3 group: X25519MLKEM768
DONE

That last line is worth a second look. X25519MLKEM768 is a hybrid key exchange that combines classic X25519 with ML-KEM, a post-quantum algorithm. Recent OpenSSL, browsers and CDNs negotiate it by default, so if an interviewer asks what is changing in TLS, this is a current, concrete answer.

Check the certificate’s names and dates:

echo | openssl s_client -connect readthemanual.co.uk:443 -servername readthemanual.co.uk 2>/dev/null \
  | openssl x509 -noout -subject -issuer -dates -ext subjectAltName

subject=CN=readthemanual.co.uk
issuer=C=US, O=Google Trust Services, CN=WE1
notBefore=Oct  9 14:19:36 2026 GMT
notAfter=Jan  7 15:17:27 2027 GMT
X509v3 Subject Alternative Name:
    DNS:readthemanual.co.uk, DNS:*.readthemanual.co.uk

Always pass -servername. Without SNI, a server that hosts many sites may hand you its default certificate, and you will chase a “wrong certificate” problem that does not exist. The flags are documented in the openssl s_client manual.

Step 4b: HTTP/2 over TCP, or HTTP/3 over QUIC

During the TLS handshake, ALPN settles which HTTP version to speak. In the curl -v capture below you will see ALPN: curl offers h2,http/1.1 followed by ALPN: server accepted h2.

• HTTP/2 (RFC 9113) multiplexes many requests as streams over one TCP connection with compressed headers. Its weakness is TCP itself: one lost packet holds up every stream on the connection until it is retransmitted (head-of-line blocking).
• HTTP/3 (RFC 9114) runs over QUIC (RFC 9000) on UDP port 443. QUIC builds TLS 1.3 into its own handshake, so transport and encryption are set up in one round trip instead of TCP’s one plus TLS’s one. Streams are independent, so a lost packet only stalls its own stream, and connections can survive your phone moving from Wi-Fi to mobile data because they are identified by connection IDs rather than IP and port.

How the browser finds out HTTP/3 is available. Two ways. The first is the HTTPS DNS record from Step 2 (alpn="h3,h2"). The second is the Alt-Svc response header (RFC 7838, MDN) on an HTTP/2 response:

alt-svc: h3=":443"; ma=86400

That tells the browser “HTTP/3 is available on UDP 443, remember it for 86,400 seconds”, so the next connection uses QUIC. If a corporate firewall blocks outbound UDP 443, the browser quietly falls back to HTTP/2 over TCP. Pages still load, which is why this can go unnoticed for months.

To test HTTP/3 from the command line you need a curl built with HTTP/3 support. Check with curl -V and look for HTTP3 in the Features line; if it is there, curl --http3 -sI https://readthemanual.co.uk/ will show HTTP/3 200. Many distribution builds of curl do not include it yet, in which case you get “the installed libcurl version does not support this”. In the browser, DevTools’ Network tab has a Protocol column (right-click the column headers to add it) that shows h2 or h3 per request.

Step 5: The HTTP Request

With a secure connection open, the browser sends the request. HTTP semantics (methods, status codes, headers) are defined once in RFC 9110 and carried by HTTP/1.1, HTTP/2 or HTTP/3. A request contains:

• Method and path: GET /from-arpanet-to-your-router/. In HTTP/2 and HTTP/3 these travel as pseudo-headers (:method, :path, :scheme, :authority).
• Host / :authority: which site you want, since one IP may serve hundreds.
• User-Agent, Accept, Accept-Language, Accept-Encoding (for example gzip, br, zstd): what the client is and what it can handle.
• Cookie: session tokens and preferences previously set by this site.
• Conditional headers: If-None-Match or If-Modified-Since when the browser has a stale cached copy, so the server can answer 304 Not Modified instead of resending the body.

See the whole exchange with curl -v:

curl -sv -o /dev/null https://readthemanual.co.uk/

Output captured 31 October 2026 with curl 8.14.1 (trimmed; lines starting * are curl’s commentary, > is what you sent, < is what came back):

*   Trying 104.21.58.148:443...
* ALPN: curl offers h2,http/1.1
* TLSv1.3 (OUT), TLS handshake, Client hello (1):
* TLSv1.3 (IN), TLS handshake, Server hello (2):
* TLSv1.3 (IN), TLS handshake, Encrypted Extensions (8):
* TLSv1.3 (IN), TLS handshake, Certificate (11):
* TLSv1.3 (IN), TLS handshake, CERT verify (15):
* TLSv1.3 (IN), TLS handshake, Finished (20):
* TLSv1.3 (OUT), TLS handshake, Finished (20):
* SSL connection using TLSv1.3 / TLS_AES_256_GCM_SHA384 / X25519MLKEM768 / id-ecPublicKey
* ALPN: server accepted h2
* Server certificate:
*  subject: CN=readthemanual.co.uk
*  subjectAltName: host "readthemanual.co.uk" matched cert's "readthemanual.co.uk"
*  issuer: C=US; O=Google Trust Services; CN=WE1
*  SSL certificate verify ok.
* using HTTP/2
> GET / HTTP/2
> Host: readthemanual.co.uk
> User-Agent: curl/8.14.1
> Accept: */*
>
< HTTP/2 200
< content-type: text/html; charset=UTF-8
< server: cloudflare
< cf-cache-status: DYNAMIC
< alt-svc: h3=":443"; ma=86400

Every message of the TLS 1.3 handshake from Step 4 is visible there in order: one flight out (Client hello), one flight back (Server hello through Finished), then the client’s Finished and the request.

Measure Every Stage at Once with curl -w

This is the single most useful command in this article. curl’s --write-out variables (curl manual, Everything curl: write-out) report how long each stage took:

curl -o /dev/null -s -w "dns:      %{time_namelookup}s
connect:  %{time_connect}s
tls:      %{time_appconnect}s
ttfb:     %{time_starttransfer}s
total:    %{time_total}s
protocol: HTTP/%{http_version}
" https://readthemanual.co.uk/

Output captured 31 October 2026 (from a UK connection with the DNS answer already cached):

dns:      0.000802s
connect:  0.004208s
tls:      0.018614s
ttfb:     0.051846s
total:    0.058790s
protocol: HTTP/2

Each value is cumulative from the start, so subtract to get the cost of each stage:

• DNS: 0.8 ms (served from the local cache).
• TCP: connect minus dns = about 3.4 ms, roughly one round trip to the nearest CDN edge.
• TLS: appconnect minus connect = about 14.4 ms.
• Server wait: ttfb minus appconnect = about 33 ms for the edge and origin to produce the first byte.
• Download: total minus ttfb = about 7 ms.

Now you can answer “the site is slow” with evidence. A large DNS figure points at the resolver. A large connect figure points at distance or packet loss. A large gap between appconnect and ttfb is the server or application. Run it a few times; the first run after a cache flush shows the true DNS cost.

Step 6: The Journey Through the Internet

Your request, encrypted inside TLS, inside TCP or QUIC, inside IP packets, crosses several networks. We covered routing in Part 1: each router forwards packets towards the destination based on its routing table, and between networks those paths are chosen by BGP.

For a UK user reaching a site behind a CDN, the path is usually short, because CDNs run edge servers in UK cities and peer directly with UK ISPs. For a site hosted in the US with no CDN, every round trip in Steps 3 and 4 crosses the Atlantic, which is why the same page can feel quick from one place and sluggish from another.

# Linux / macOS
traceroute readthemanual.co.uk

# Windows
tracert readthemanual.co.uk

# mtr combines traceroute with continuous ping: best for spotting loss
mtr -rwc 50 readthemanual.co.uk

When reading mtr, loss that appears at one hop and disappears at the next is usually that router rate-limiting replies to probes, not real loss. Loss that starts at a hop and continues all the way to the destination is the real thing.

Step 7: CDN Edge, Load Balancer or Reverse Proxy

Your request rarely reaches the application server directly. It usually lands first on a reverse proxy or load balancer, often operated by a CDN. It does several jobs:

• TLS termination: it holds the certificate and decrypts traffic, then talks to the backend over a separate connection (ideally also encrypted).
• Routing: based on the Host header and path, it sends the request to the right backend.
• Load balancing: round robin, least connections or weighted, with health checks to skip dead backends.
• Caching: it may answer from its own cache without contacting the origin.
• Security: rate limiting, WAF rules and DDoS absorption.

If you’ve followed our Nginx Proxy Manager guide, you’ve already built one of these. The same concept scales from a Raspberry Pi running Nginx to a CDN handling millions of requests per second.

For ReadTheManual, Cloudflare is the reverse proxy, which is why the dig output above returns Cloudflare addresses rather than the origin server’s. Response headers tell you what the edge did: in the capture above, server: cloudflare and cf-cache-status: DYNAMIC mean the edge passed the request to the origin rather than serving it from cache. HIT would mean the origin never saw the request. Other CDNs and proxies use headers such as x-cache or age for the same purpose.

Step 8: Server Processing

The request reaches the origin web server: Nginx, Apache, LiteSpeed, IIS, or an application server behind them. It does one of two things:

Static content: an HTML file, image or stylesheet is read from disk (or memory) and returned. Fast.

Dynamic content: the request is passed to application code. For WordPress, PHP runs the theme templates, queries MySQL or MariaDB for the post, assembles HTML and hands it back. A page cache in front of PHP can skip most of that work.

This is where slow database queries, exhausted PHP workers and slow calls to external APIs show up, and they show up as time to first byte. In the curl -w breakdown, a fast connect and TLS followed by a long wait before ttfb is the signature of a server-side problem.

Step 9: The HTTP Response

The response carries a status code, headers and a body. The status codes you will meet most:

Response headers include Content-Type, caching rules (Cache-Control, ETag), cookies to set (Set-Cookie), protocol hints (Alt-Svc) and security headers (Strict-Transport-Security, Content-Security-Policy). curl -I shows them on their own.

The body is the HTML, JSON or image bytes, usually compressed with gzip, Brotli or Zstandard depending on what the client offered in Accept-Encoding.

Step 10: Browser Rendering

The browser starts working on the HTML as soon as the first bytes arrive, not when the download finishes. MDN’s “How browsers work” walks through the same pipeline in more detail:

1. Parse HTML into the DOM. The parser builds the Document Object Model, a tree of every element. A preload scanner runs ahead of it, spotting stylesheets, scripts, fonts and images and starting their downloads early.

2. Fetch subresources. Each CSS file, script and image is another request. Same-host requests reuse the existing HTTP/2 or HTTP/3 connection; requests to other hosts (fonts, analytics, CDNs) go through DNS, TCP and TLS all over again.

3. Build the CSSOM. CSS is parsed into the CSS Object Model. CSS is render-blocking: the browser will not paint until it has the stylesheets in the <head>.

4. Run JavaScript. A plain <script> tag stops the HTML parser until it has downloaded and run. defer scripts run after parsing in order; async scripts run as soon as they arrive. Scripts can change the DOM and trigger more requests.

5. Style and layout. The DOM and CSSOM are combined into a render tree of visible elements, and layout calculates each element’s size and position for the current viewport.

6. Paint and composite. Elements are drawn into layers and the layers are composited onto the screen, often on the GPU. Later changes that alter size or position trigger layout again, which is what causes visible layout shift.

DevTools (F12) shows all of it. The Network tab shows each request with a timing breakdown (Queueing, DNS Lookup, Initial connection, SSL, Waiting for server response, Content Download), which maps directly onto Steps 2 to 9. The Performance panel shows parsing, scripting, layout and paint.

Troubleshooting: Error Messages Mapped to the Layer That Failed

Most “the website is broken” tickets come with an error string. Each one points at a stage:

How to Answer This in an Interview

Interviewers are listening for structure, correct protocol names and the ability to go deeper on request. A good shape:

1. Give the 30-second overview first (the short answer at the top of this article), so they know you can see the whole path.
2. Offer to go deeper: “I can go into any of those in more detail. Is there a part you’re most interested in?” Many interviewers will steer you to DNS or TLS. Some want all of it.
3. Mention a command at each stage. dig +trace, openssl s_client, curl -v and curl -w show you have actually looked, rather than memorised a list.
4. Name a failure mode per stage. It shows operational instinct, which is what the question is really testing.

Follow-up questions to expect, with the short answers:

• “What if the DNS lookup fails?” NXDOMAIN versus SERVFAIL versus timeout, and how you would tell them apart with dig.
• “Why is TLS 1.3 faster than 1.2?” The client sends its key share in the first message, so the handshake takes one round trip instead of two. 0-RTT resumption removes it entirely for repeat visits, at the cost of replay risk.
• “What’s the difference between HTTP/2 and HTTP/3?” Same semantics; HTTP/3 runs over QUIC on UDP, combines the transport and TLS handshakes, and avoids TCP head-of-line blocking.
• “How does the browser know to use HTTP/3?” The Alt-Svc header on an earlier response, or an HTTPS DNS record with alpn="h3".
• “What does HSTS protect against?” SSL stripping on the first plain-HTTP request; preloading protects even the very first visit.
